Panel colour

Aluminium silver grey

Power input condition (single phase 3 wire) Number of channels

AC190-250V 50-60HZ two-phase (three-wire: zero, fire, earth)

Relay controlled output maximum withstand single

8-way universal socket relay controlled

channel power/total power (reactive power)

6000W/10000W max. withstand reactive power

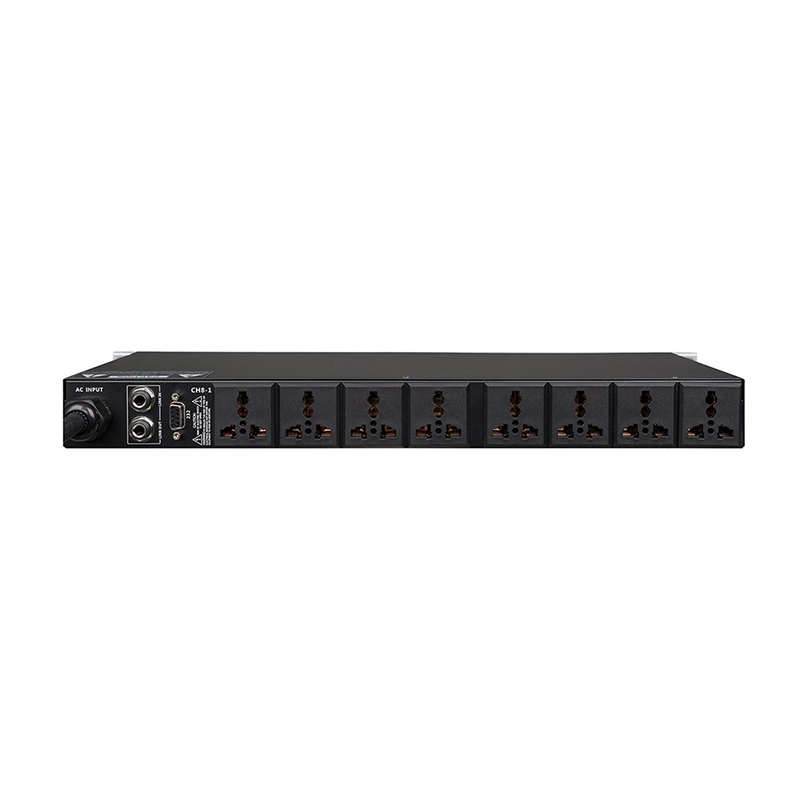

Output power socket specification

Flame retardant ABS material, maximum withstand 13A current Phosphor bronze material, standard universal socket

Functional features

1: dot matrix function display 2: LCD voltage display 3: password set on 4: sequence open reverse order off, free set channel 6: COM central control (command control) or self-contained software control 7: time interval adjustable 8: free channel off 9: Cascade stacker ID:0-255 10: Central external control 11: Independent closure of panel channels

Switching interval time per channel/timing time

Default 1 sec (can be freely set)

Output relay contact current

30A 277VAC

Circuit board specifications

Double-sided fibreboard, secondary thickened and thickened treatment for mains alignment

Power supply specification

Built-in switching power supply for global voltage AC90-260V 50-60HZ

Mains cable specification

3*4 square cable, total length is 1.5m

Type of switch on

Push button light touch switch

Single circuit independent switch function

Support panel independent control (can be software set control)

Function Display Voltage Display Meter Type

Dot matrix function display voltmeter with function menu

Stacked machine cascade function

Random control software and support for

Comes with its own command code and control software,

central control functions with ID number assignment

supports central control, ID:0-255

Product/transport dimensions

482×185×44/555×255×85MM (non-standard 1U) (WxDxH)

Weight

3.5kg
