· High power - Xtd amplifier delivers unprecedented output power of total 13,000W(2x6500W@2ohms) in only 2U frame.
· Good sound quality - Xtd amplifier not only maintains ClassA/B favored sound quality and reliability but also with Class D efficiency.
· Regulated Switch Mode Power Supply (RSMPS) - Xtd amplifier is able to remain constant output power even with wide fluctuation of external mains voltage.
· Efficient cooling system – Unique copper cooling system allows more heat dissipation at extended peak output.

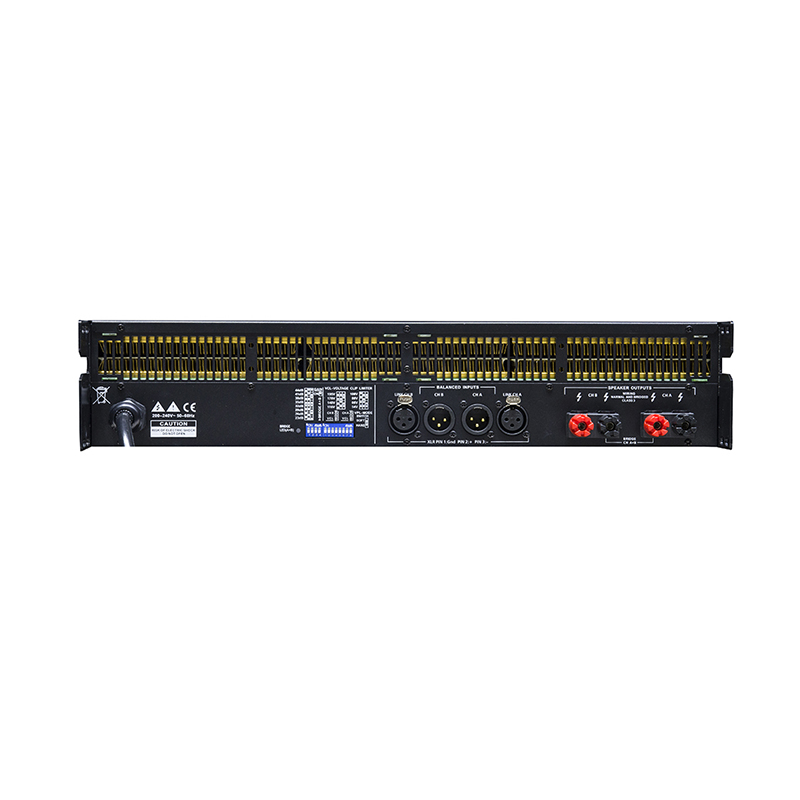

· XLR signal input and link connectors
· Comprehensive protection – Equips with protection circuitry for excessive output current, DC, over heat, very high frequency (VHF), short circuit, open load, main fuse protection and soft start.
Model | Xtd-2300H2 |
Number of Channels | 2 |
Peak total output both channels driven | 13000W |
Peak output voltage each channel | 195Vpeak |
Max. output power (each channel) | 6500W/2 ohms 4000W/4 ohms 2300W/8 ohms |
THD from 20Hz-20kHz for 1W | 20Hz-20kHz,1W时<0.1% |
S/N ratio | >112dB |
Channel separation(Crosstalk) at 1KHz | >70dB |
Frequency response(1W,8 ohms)+0/-3dB | 10Hz-25kHz |
Operating voltage | 180-260V 50~60Hz |
Minimum power-up voltage | 171V |
Product /shipping dimensions | 482 x 392 x 88(585x530x135)mm (WxDxH) |
N.W/G.W | 14.0kg/15.5kg |
