BM3000

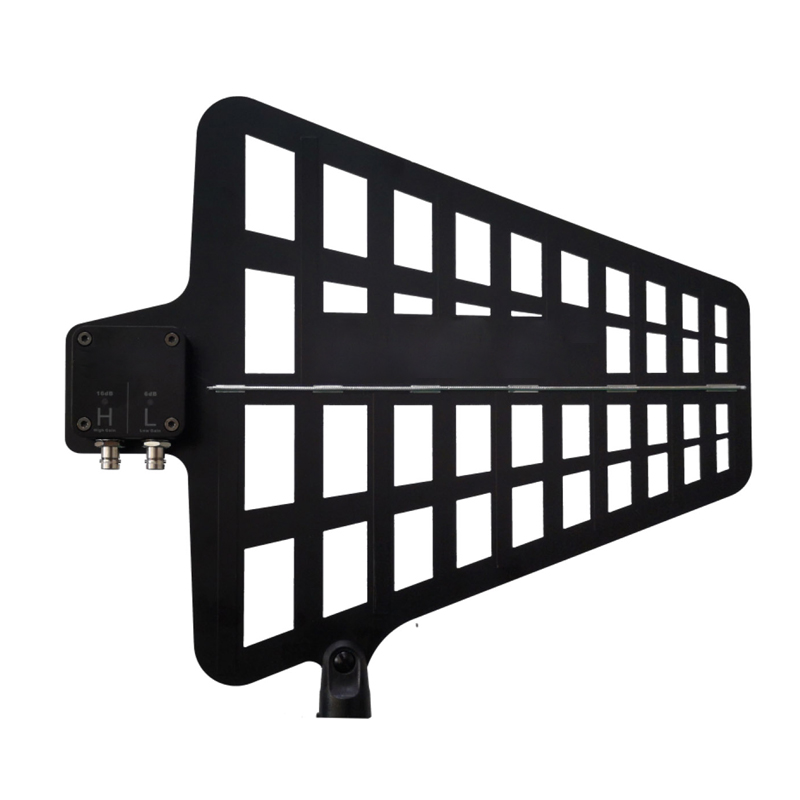

ModelBM1000BFrequency range470MHz-830MHzPolarizationHorizontalGain(dBi)8Half-pow...
Product details

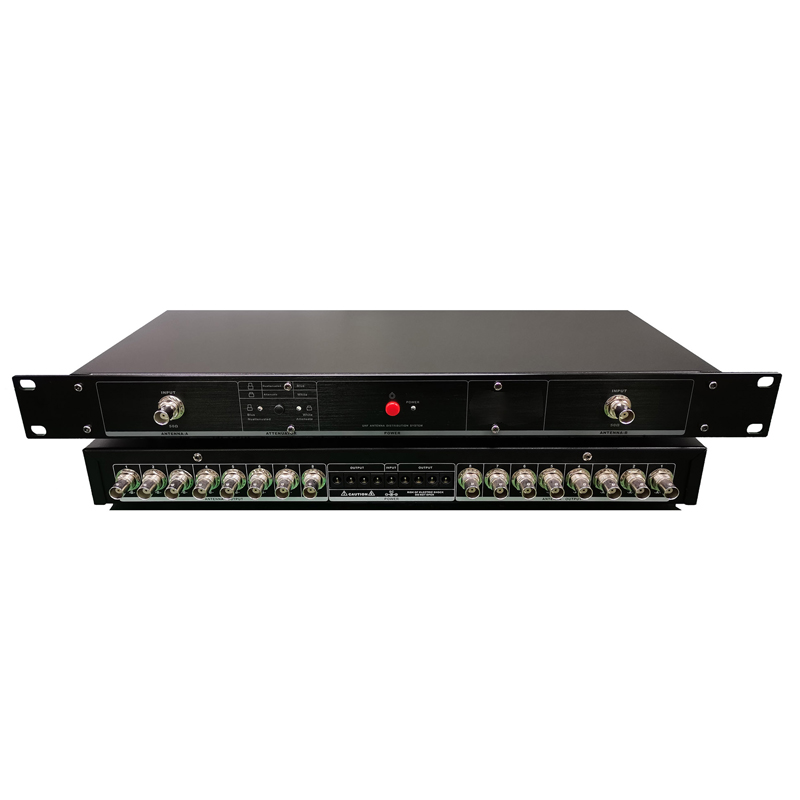

BM 3000 is a multi-channel antenna distribution system tailored for up to four 2-channel true diversity auto scan receivers. It only needs to connect to one pair of antennas, which can effectively simplify installation and improve reception range and performance.

BM3000 utilizes high dynamic range but low-noise active components and a newly designed active feedback current-stabilizing bias. It features ultra-low intermodulation distortion to eliminate intermodulation interference when multiple channels are used simultaneously. Output gain is approximately 1. The equipped 12V/2A power supply can power up four receivers.




Model

BM3000

Frequency Range

470–870MHz

RF Gain

-5dB – +3dB

Attenuator Switch (out)

+3dB (blue indicator)

Attenuator Switch (in)

-5dB (white indicator)

Isolation

>25dB

Impedance

50Ω

Connector

BNC

Product dimensions

485×20×45

Shipping dimensions

545×310×143

N.W/G.W

3.0kg/4.1kg
