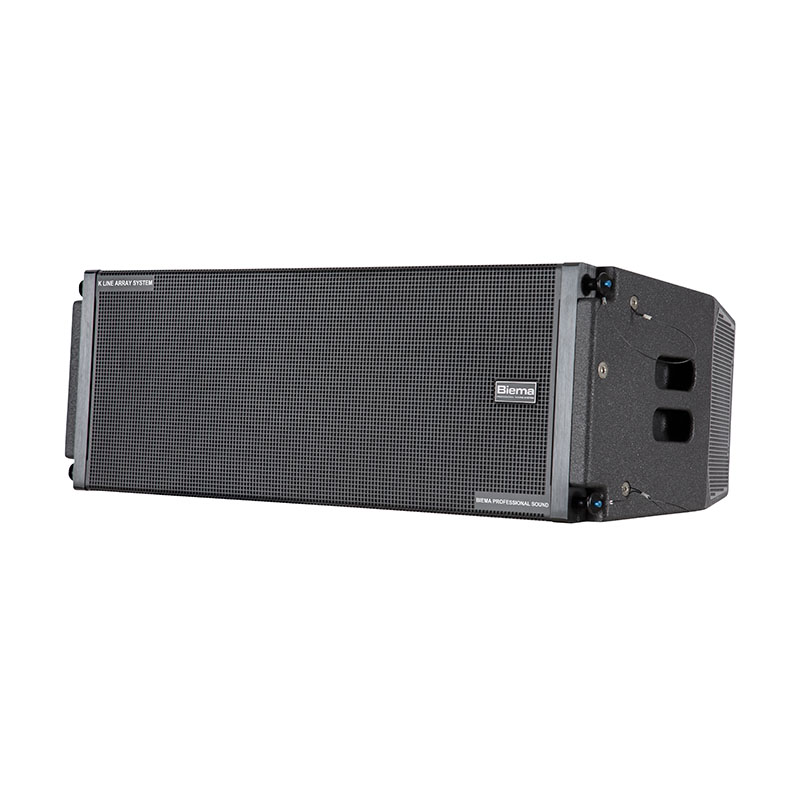

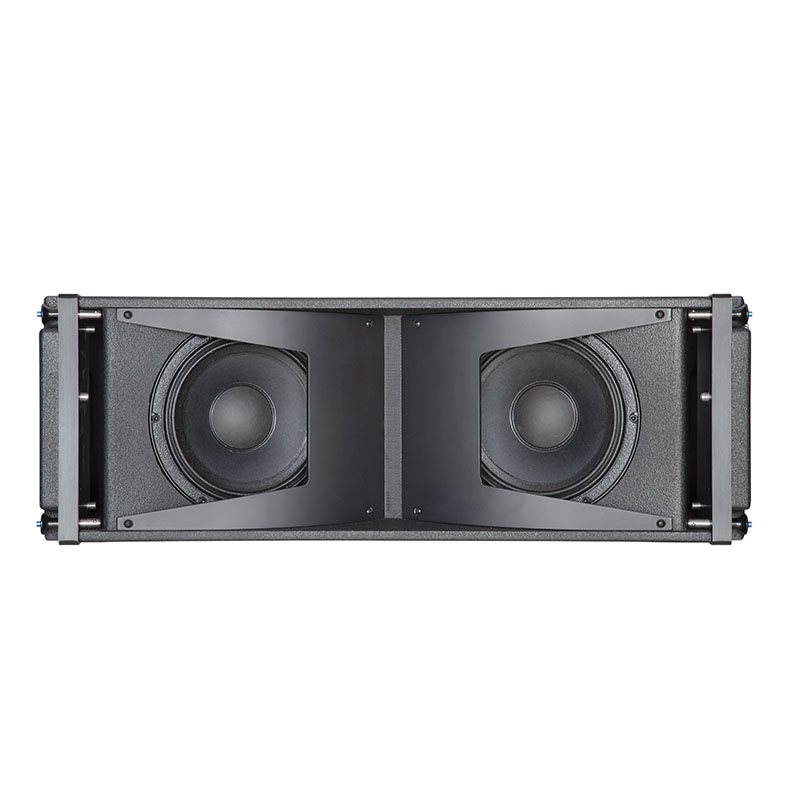

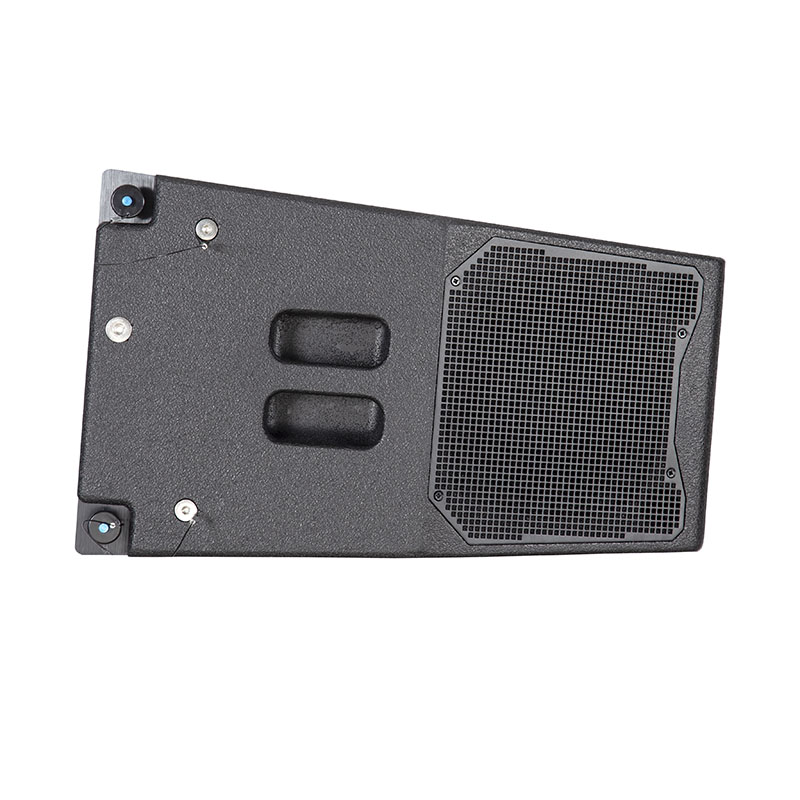

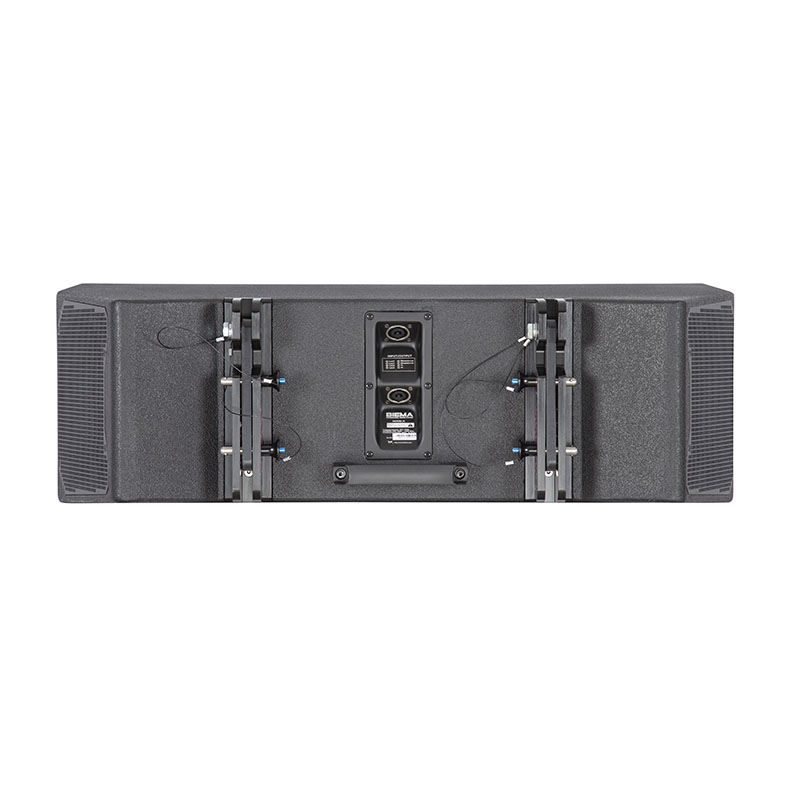

K (Kappa) is a lightweight medium-sized line array speaker . It consists of 5 neodymium drivers, tailored with an optimized compact cabinet and an aluminum alloy rigging hardware. It is suitable for mobile performances and medium to large events.
A patented constant directional plate in the MF part, paired with a linear wave guide provides uniform 100 degree horizontal coverage throughout the entire frequency range, while outputting impressive ultra-low distortion sound pressure levels.
· Extremely high sound pressure level.
· IP54.
· Patented aluminum alloy rigging hardware.
· 1x3” neodymium compression driver.
· 2 x 10 "high-power neodymium woofer.
· 2 x 8 "directional controllable neodymium woofer.
· Environmentally friendly polyurea paint.
· Patented HF horn.
· Frequency response 52-20KHz.
· Cardioid subwoofer coverage optional.
· Horizontal arrayable.
Model | Κ |
Frequency response | 52Hz-20KHz |
Drivers | HF 1x3＂neodymium compression driver |
Coverage controllable woofer: 2x8＂neodymium (65mmvoice coil) | |
LF 1:1x10＂(65mm voice coil); LF 2:1x10＂(65mm voice coil) | |
Dispersion | H100°xV8° |
Impedance | LF1 8ohm;LF2 8ohm;HF 8ohm;Coverage controllable woofer 8ohm |
Rated power(RMS) | LF 1 300W;LF 2 300W;HF 100W;Coverage controllable woofer 500W |
Peak power | LF 1 1200W;LF 2 1200W;HF 400W;Coverage controllable woofer 2000W |
Max SPL | LF 1 1200W;LF 1 134dB;HF 136dB;Coverage controllable woofer 133dB |
Connectors | 2x8-pin Speakon |
Suspension anagles | 0°,2°,4°,6°,8° |
Product dimensions | 900x522x319mm(WxDxH) |
Shipping dimensions | 592x382x962mm (WxDxH) |
N.W/G.W | 38.0kg/43.0kg |
